WATER VALVES

2U44

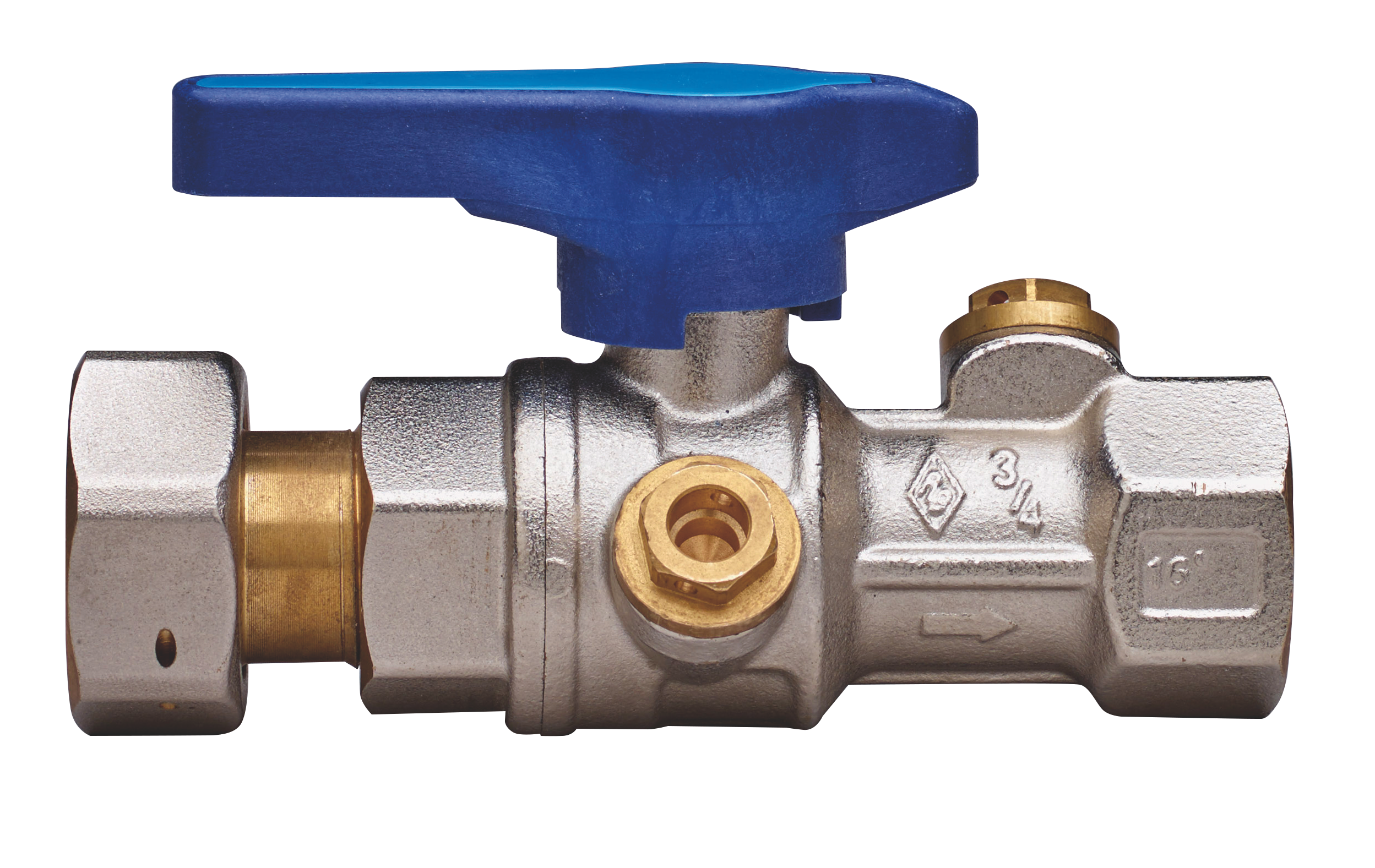

Water full bore ball valve with meter’s exit, thread female/nut, check valve incorporated, pressure measurement connection, technopolymer handle and ball with automatic rinse system.
Technical specifications

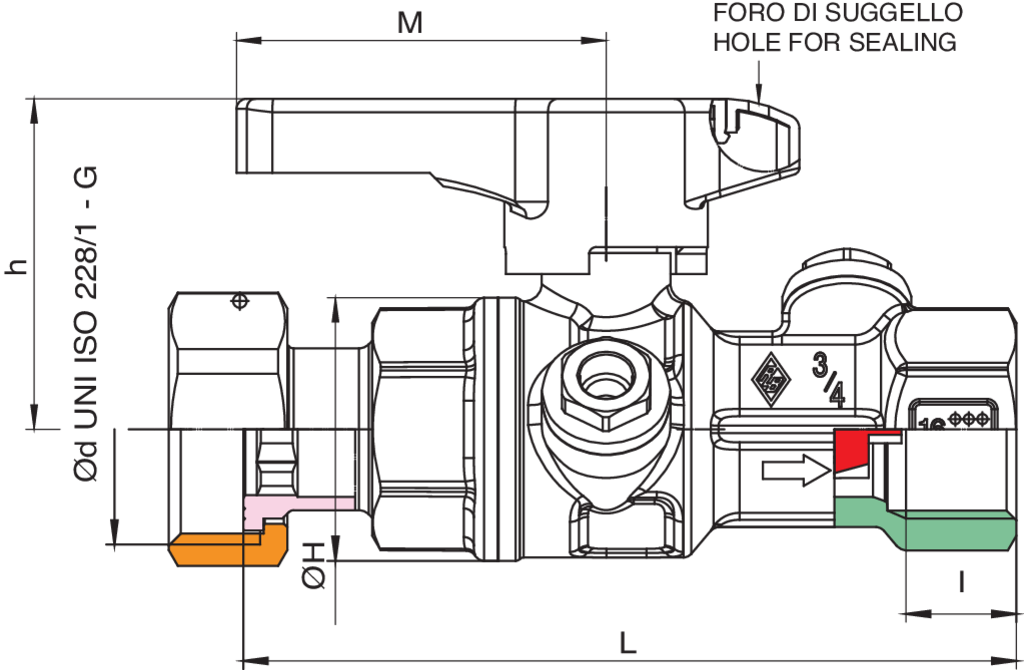

SIZE BOX MASTER BOX CODE I ØH L M h Kv PN Kg
1/2" x 3/4" 10 40 2U44260000 15 33 97,5 54,5 41,5 5 64 0,39
3/4" x 1" 10 20 2U44580000 16,3 39 104 54,5 49 8,8 64 0,59
1" x 1"1/4 6 12 2U44290000 19,1 49 132,5 54,5 53 14,6 64 0,91
Applications
Available media and videos
BIM
2U44.zip
