Technical specifications

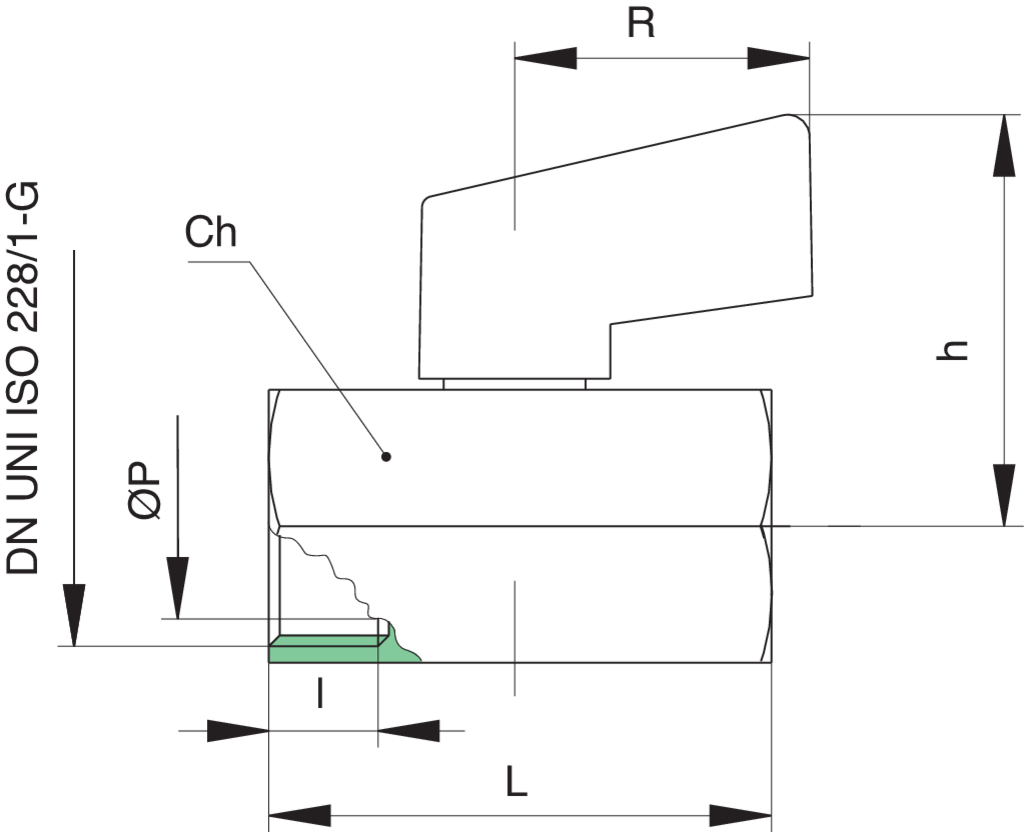

SIZE DN BOX MASTER BOX CODE ØP I L h R Ch Kv PN Kg
1/4" 8 40 240 4030020000 8 10 41 36,5 27 21 4,3 10 0,11
3/8" 10 20 80 4030030000 8 10 41 36,5 27 21 2,7 10 0,10
1/2" 15 20 80 4030040000 10 11 46 37,7 27 25 5,4 10 0,14

Temperature range: -20°C +150°C.
