PRESS-SYSTEM TURBO CUNI

5N1200

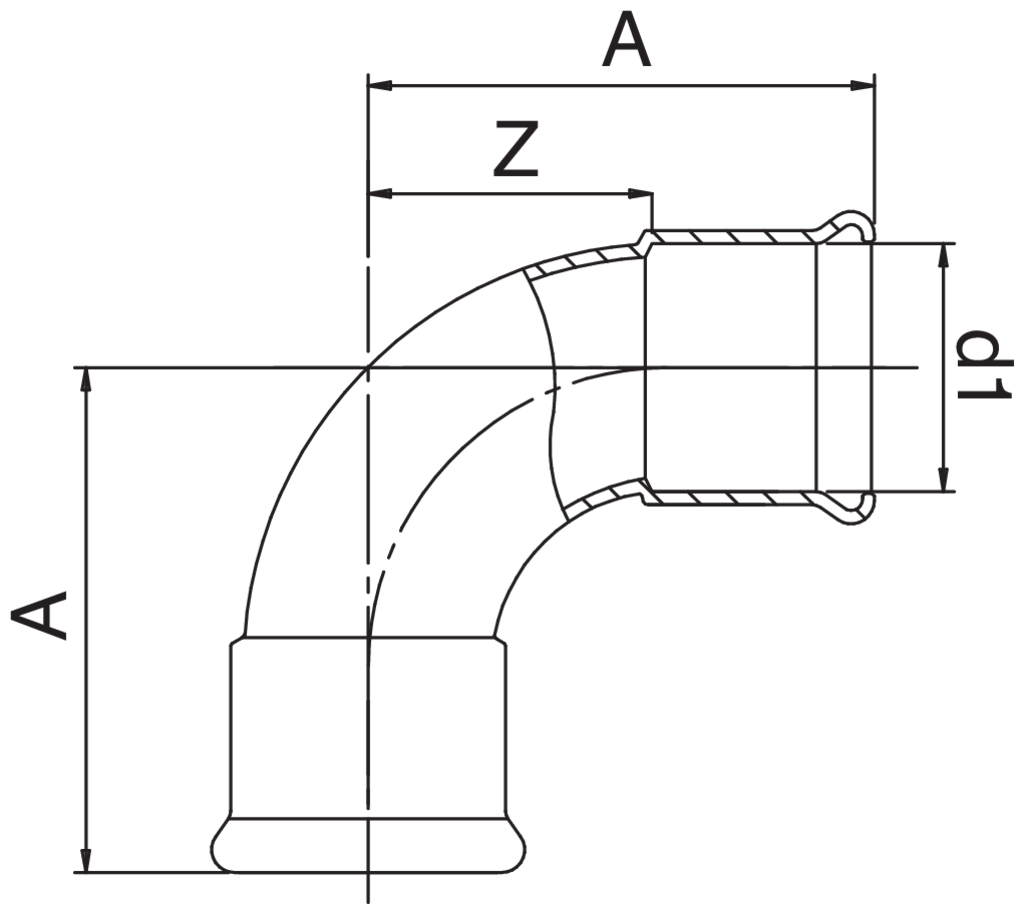

F/F 90° elbow.

Technical specifications

d1	BAG	MASTER BOX	CODE	A	ZA
15	10	250	5N120015	36	17
18	10	200	5N120018	41	21,5
22	5	125	5N120022	46	25
28	5	70	5N120028	52	30
35	5	40	5N120035	62	35
42	2	20	5N120042	76	46
54	2	8	5N120054	94	59
76,1	1	5	5N120076	145	91
88,9	1	2	5N120088	172	111
108	1	1	5N1200108	208	132
