BALL VALVES SERIES
/
EURO-SFER
/
1710
EURO-SFER
1710

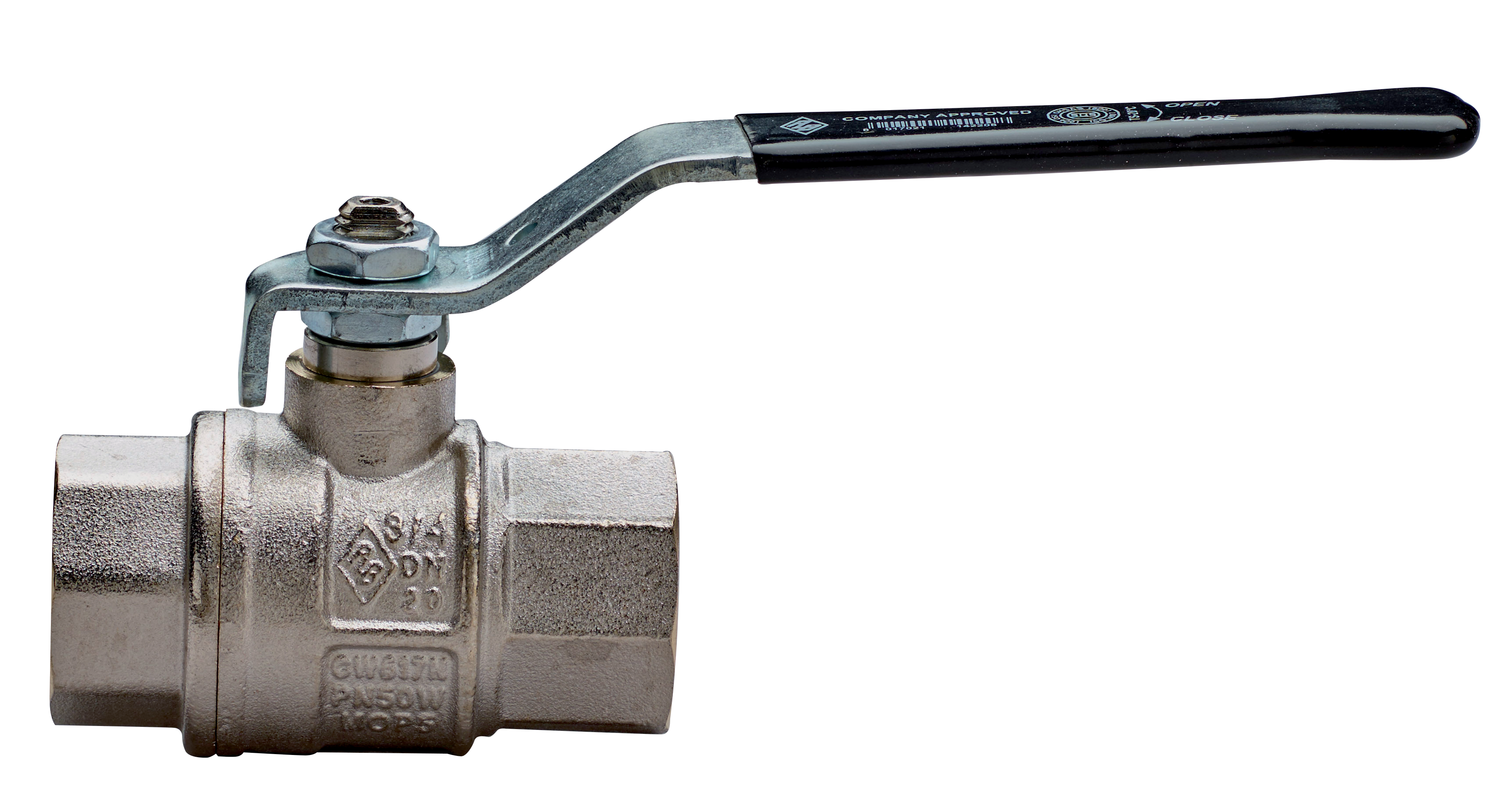

Full bore ball valve, F/F threaded, with steel handle.

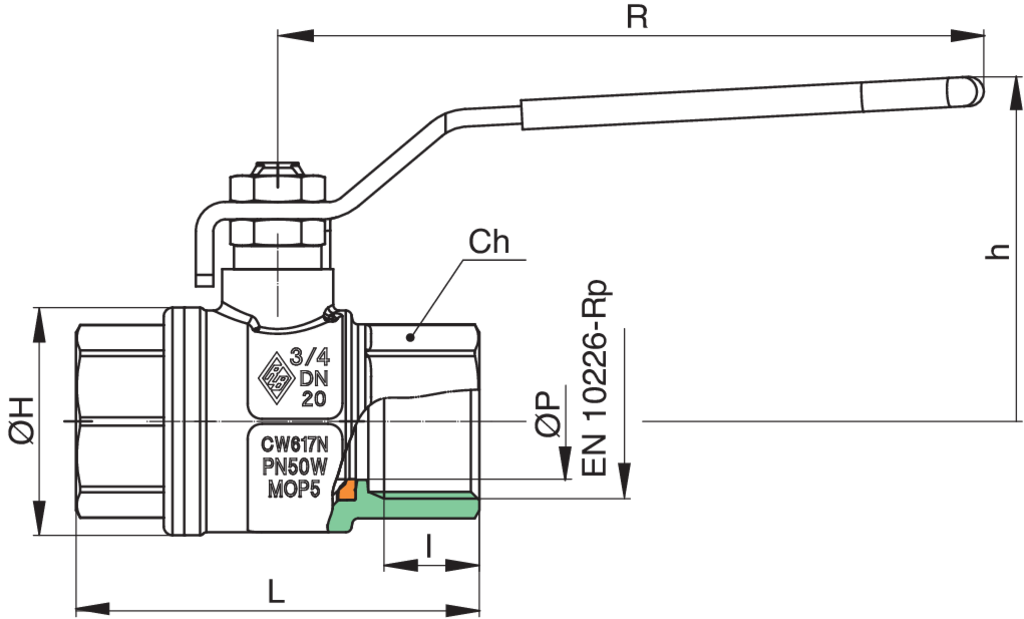

Technical specifications
SIZE
DN
BOX
MASTER BOX
CODE
ØP
I
L
ØH
Ch
R
h
Kv
PN
Kg
1/4"
8
20
80
1710020000
10
11
51,5
23
20
95
43
5,4
64
0,15
3/8"
10
20
80
1710030000
10
11,4
51,5
23
20
95
43
6
64
0,14
1/2"
15
20
80
1710040000
15
15
62
33
25
95
47
16,3
64
0,21
3/4"
20
10
40
1710050000
20
16,3
69
39
31
120
59
29,5
50
0,36
1"
25
10
20
1710060000
25
19,1
83
49
38
120
63
43
50
0,53
1"1/4
32
6
12
1710070000
32
21,4
96
59
48
150
76
89
50
0,89
1"1/2
40
4
8
1710080000
40
21,4
108
73
54
150
82
230
40
1,29
2"
50
2
4
1710100000
50
25,7
127,5
86
67
160
95
265
40
2,00
2"1/2
65
2
4
1710120000
65
30,2
152
111
90
205
122
540
25
3,73
3"
80
0
4
1710140000
80
33,3
177
136
105
205
133
873
25
5,95
4"
100
0
2
1710180000
100
39,3
214
166
130
260
166
1390
25
10,57
Temperature range: -20°C +160°C.
