CATALOGUE
/
PUSH AND PRESS FITTING SYSTEM FOR MULTILAYER PIPE
/
TURBO PUSH MULTILAYER PIPE AND FITTINGS SYSTEM
/
540000
TURBO PUSH MULTILAYER PIPE AND FITTINGS SYSTEM
540000

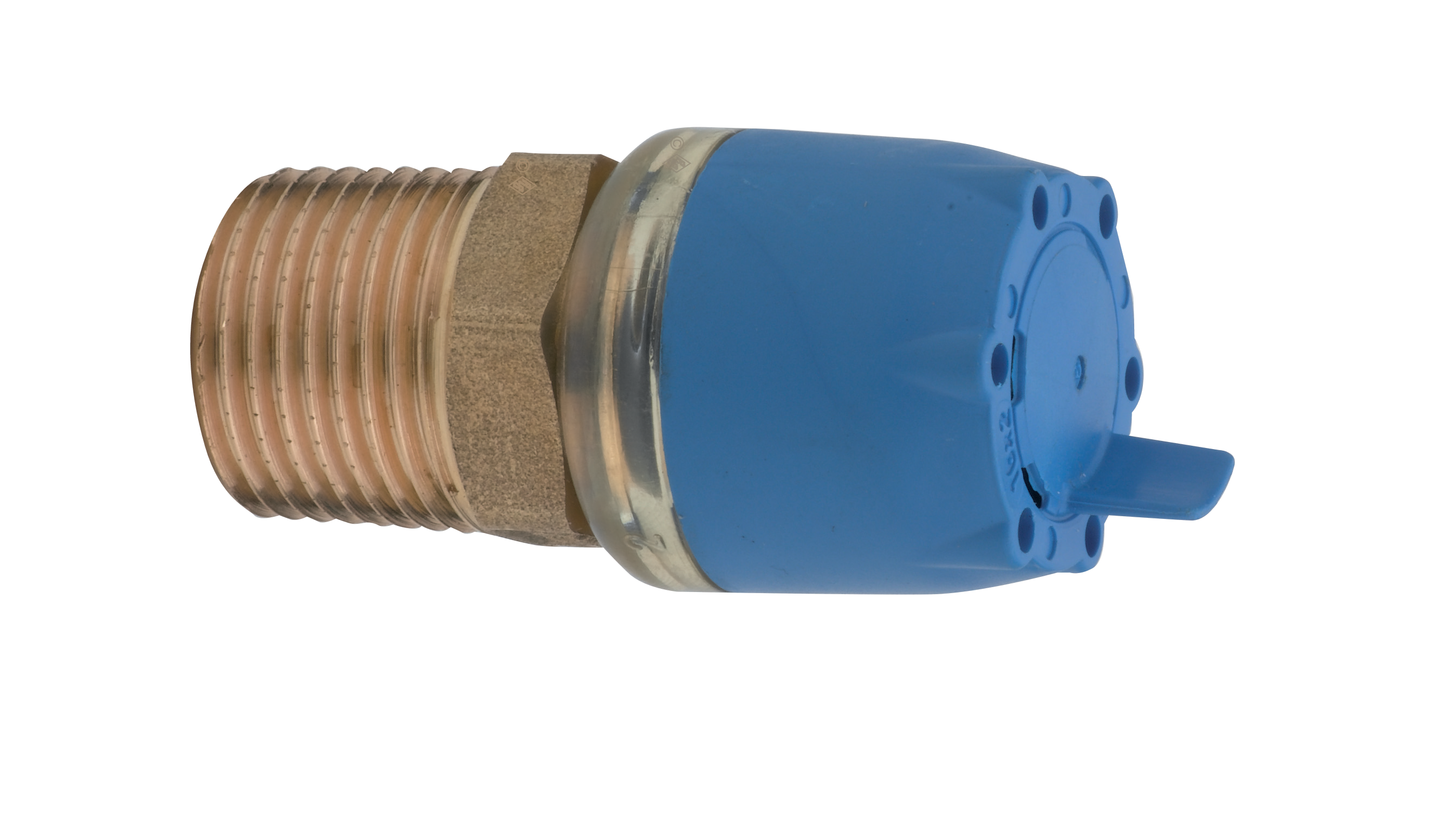

Straight male thread fitting.
Technical specifications

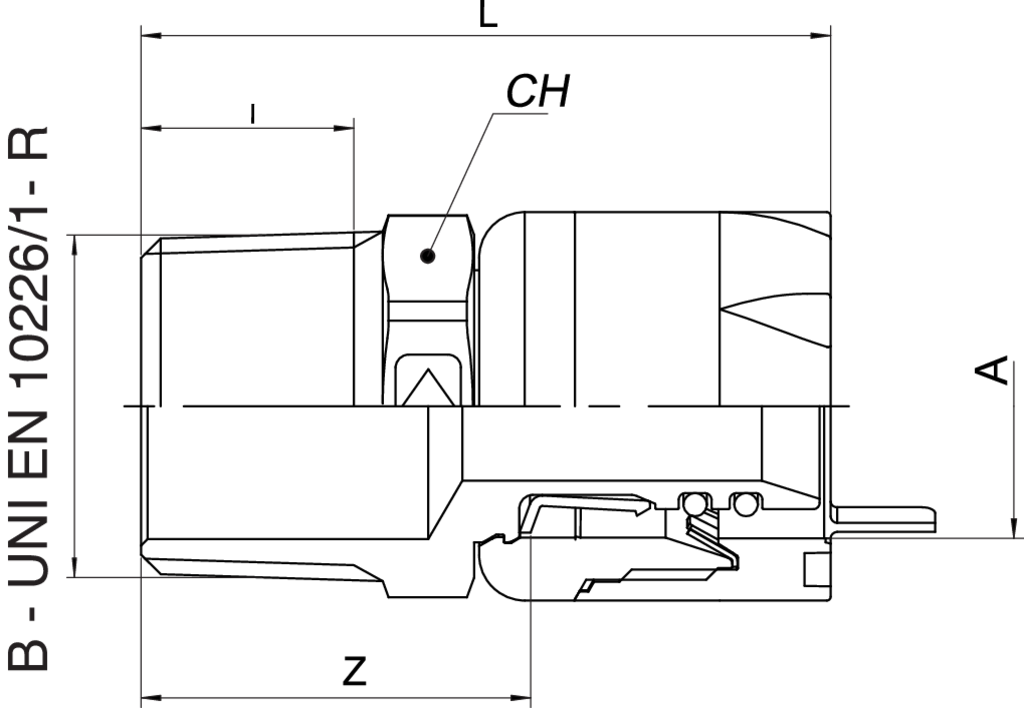

A x B
SP
BAG
BOX
MASTER BOX
CODE
I
CH
L
Z
16 x 1/2"
2
1
40
160
5400001604
15
22
51,5
28,5
20 x 1/2"
2
1
40
160
5400002004
15
22
51,5
28,5
20 x 3/4"
2
1
40
160
5400002005
16,3
27
53
30
26 x 3/4"
3
1
30
120
5400002605
16,3
27
55
30
26 x 1"
3
1
25
100
5400002606
19,1
34
60
35
Applications
Available media and videos
Catalogue
Price list
Back to the catalogue
