COPPER AND BRONZE V-PROFILE PRESSFITTINGS KOMBI

RR9131

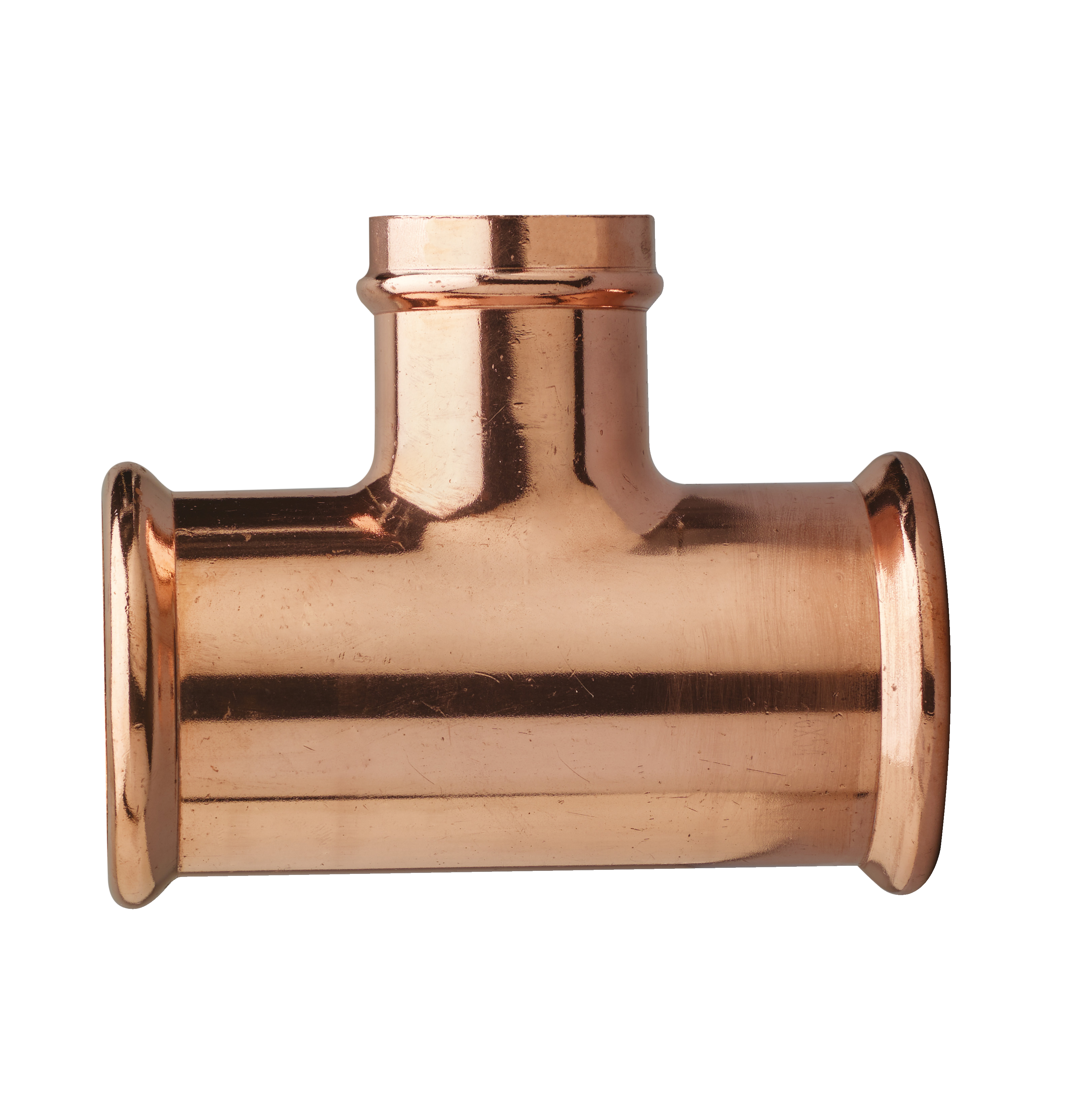

Copper F/F/F reducing tee.

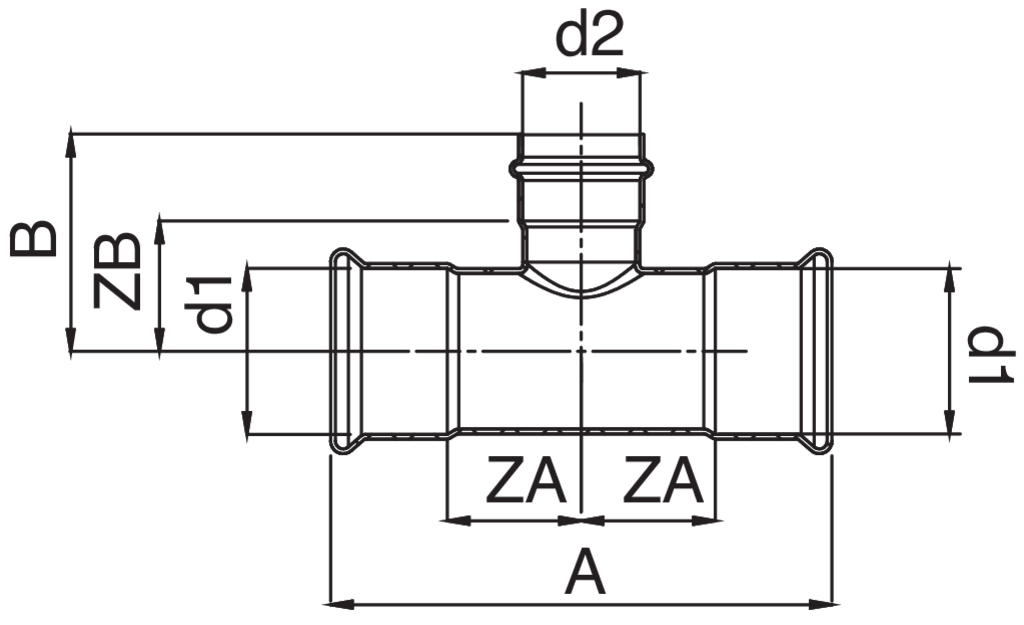

Technical specifications

d1 x d2 x d1	BAG	MASTER BOX	CODE	A	B	ZA	ZB
76.1* x 54 x 76.1*	1	5	RR9131076054076	242	93	76	68
88,9* x 76,1* x 88,9*	1	2	RR9131089076089	272	126	76	68
88.9* x 54 x 88.9*	1	5	RR9131089054089	272	127	92	81
108* x 54 x 108*	1	2	RR9131108054108	324	133	92	72
108* x 76,1* x 108*	1	2	RR9131108076108	324	136	92	81
108* x 88,9* x 108*	1	2	RR9131108089108	324	142	92	72
