WATER VALVES

2069

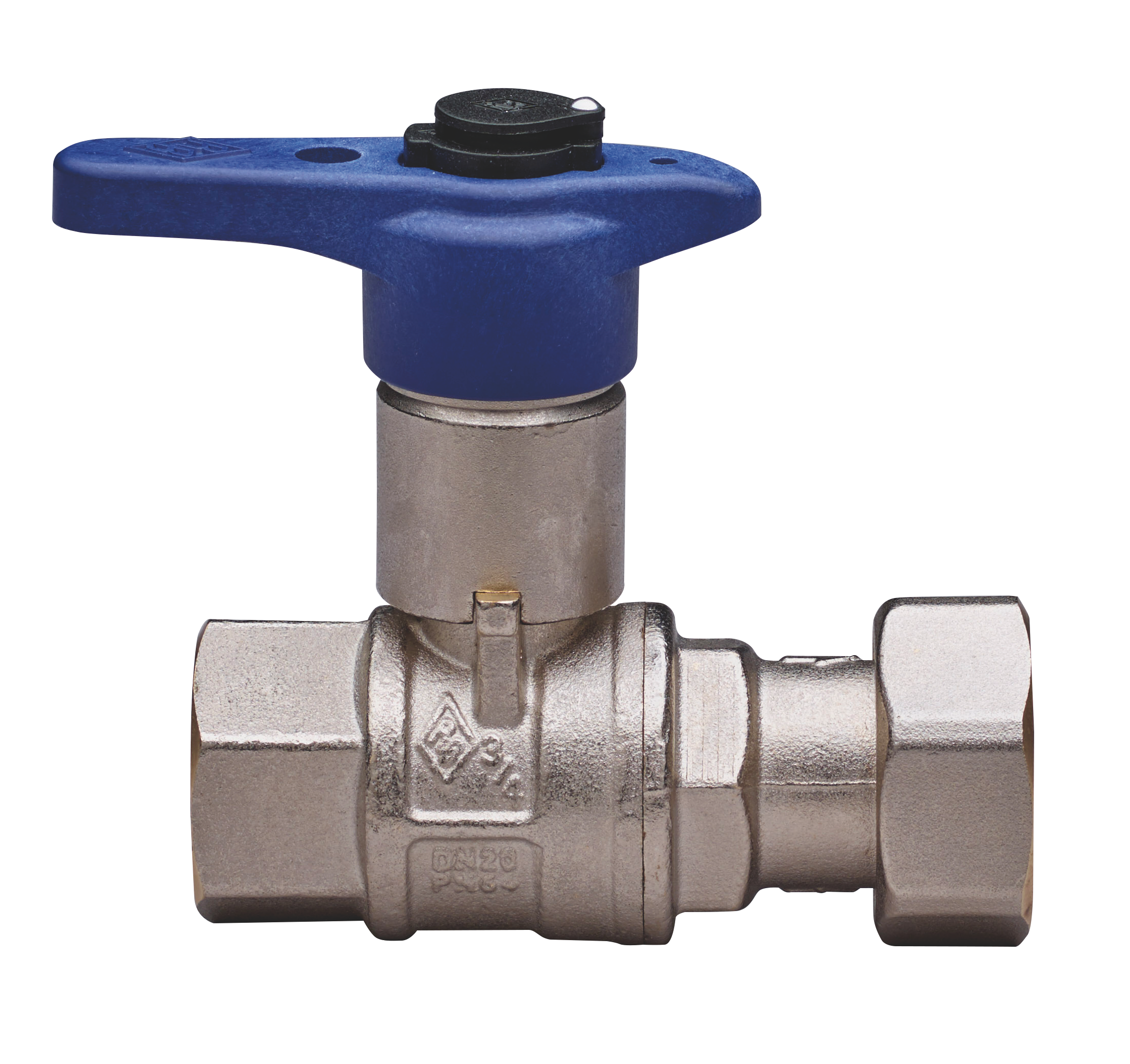

Water full bore ball valve with meter’s entrance, thread female/nut, check valve incorporated, technopolymer handle, extractable and replaceable security lock and ball with automatic rinse system.

Technical specifications

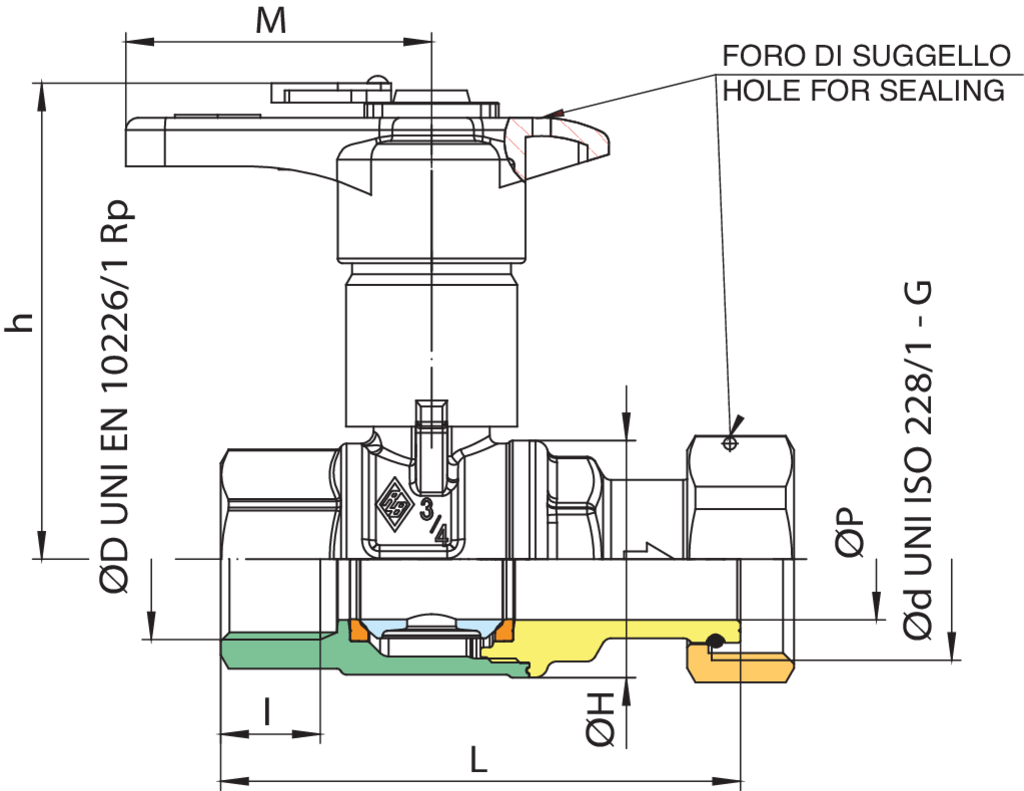

ØD x Ød	BOX	MASTER BOX	CODE	ØP	I	ØH	L	h	M	Kv	PN	Kg
1/2" x 3/4"	20	80	2069260020	15	15	33	75	68,5	50	16,3	64	0,37
3/4" x 1"	20	40	2069580020	20	16,3	39	85	78	50	29,5	64	0,53

Applications

Available media and videos

Catalogue

Price list

BIM

2069.zip
