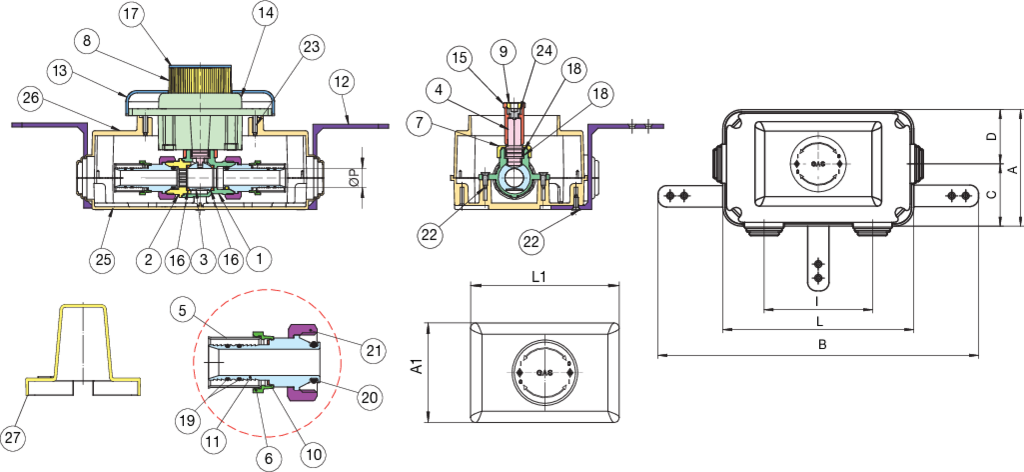

| Position | Teilname | Material | Nr. Stück |
|---|---|---|---|
| 1 | GEHÄUSE | BRASS CW617N UNI EN 12165 | 1 |
| 2 | MUFFE | BRASS CW614N UNI EN 12164 | 1 |
| 3 | KUGEL | BRASS CW617N UNI EN 12165 | 1 |
| 4 | SPINDEL | BRASS CW614N UNI EN 12164 | 1 |
| 5 | BUCHSE | STAINLESS STEEL AISI 304 | 2 |
| 6 | RING | PP | 2 |
| 7 | RING | BRASS CW614N UNI EN 12164 | 1 |
| 8 | RING | ABS | 1 |
| 9 | RING | BRASS CW614N UNI EN 12164 | 1 |
| 10 | FLACHE DICHTUNG | PE | 2 |
| 11 | VERBINDUNGSSTÜK | BRASS CW617N PTL | 2 |
| 12 | LAGER | POM | 3 |
| 13 | PLATTE | ABS | 1 |
| 14 | BEDIENUNGSSYSTEM | POM | 1 |
| 15 | ALLONGE | BRASS CW614N UNI EN 12164 | 1 |
| 16 | KUGRLDICHTUNG | PTFE | 2 |
| 17 | KAPPE | ABS | 1 |
| 18 | O-RING | NBR | 2 |
| 19 | O-RING | HNBR | 4 |
| 20 | O-RING | HNBR | 2 |
| 21 | MUTTER | BRASS CW617N UNI EN 12165 | 2 |
| 22 | SCHRAUBE | STEEL | 5 |
| 23 | SCHRAUBE | STEEL | 2 |
| 24 | SCHRAUBE | BRASS CW614N UNI EN 20898 | 1 |
| 25 | INSPEKTIONSSCHACHTEL | HIPS | 1 |
| 26 | INSPEKTIONSSCHACHTEL | HIPS | 1 |
| 27 | ABDECKUNG | HIPS | 1 |

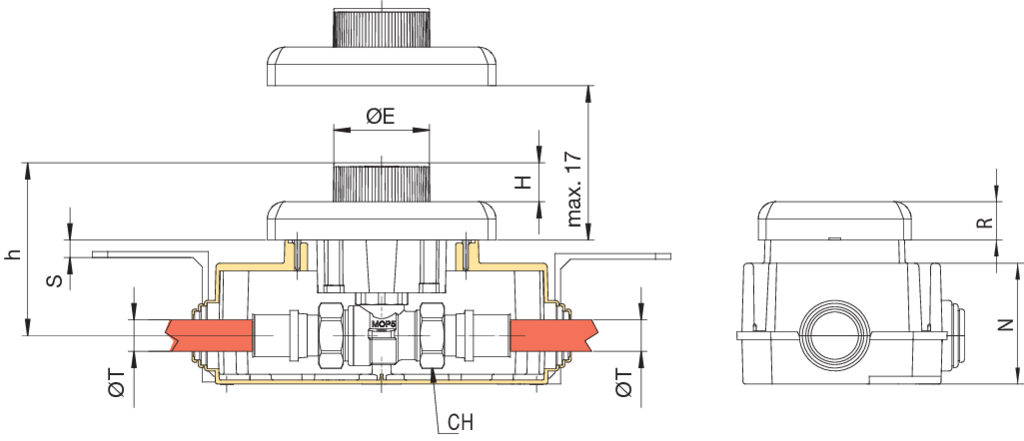

| MATERIALE - MATERIALS | GRÖßE | DN | BOX | MASTER BOX | CODE | ØT | ØP | A | A1 | B | C | D | ØE | h | H | I | CH | L | L1 | N | R | S | Kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PLASTICA CROMATA - CHROMED PLASTIC | 16 | 15 | 1 | 4 | 9371160000 | 16 | 15 | 109 | 80 | 299 | 58 | 51 | 50 | 90 | 20 | 101 | 30 | 178 | 120 | 62,5 | 20 | 9 | 0,44 |
| PLASTICA CROMATA - CHROMED PLASTIC | 20 | 15 | 1 | 4 | 9371200000 | 20 | 15 | 109 | 80 | 299 | 58 | 51 | 50 | 90 | 20 | 101 | 30 | 178 | 120 | 62,5 | 20 | 9 | 0,46 |
| PLASTICA CROMATA - CHROMED PLASTIC | 26 | 15 | 1 | 4 | 9371260000 | 26 | 15 | 109 | 80 | 299 | 58 | 51 | 50 | 90 | 20 | 101 | 30 | 178 | 120 | 62,5 | 20 | 9 | 0,48 |
| PLASTICA NERA - BLACK PLASTIC | 16 | 15 | 1 | 4 | 9371160001 | 16 | 15 | 109 | 80 | 299 | 58 | 51 | 50 | 90 | 20 | 101 | 30 | 178 | 120 | 62,5 | 20 | 9 | 0,44 |
| PLASTICA NERA - BLACK PLASTIC | 20 | 15 | 1 | 4 | 9371200001 | 20 | 15 | 109 | 80 | 299 | 58 | 51 | 50 | 90 | 20 | 101 | 30 | 178 | 120 | 62,5 | 20 | 9 | 0,46 |
| PLASTICA NERA - BLACK PLASTIC | 26 | 15 | 1 | 4 | 9371260001 | 26 | 15 | 109 | 80 | 299 | 58 | 51 | 50 | 90 | 20 | 101 | 30 | 178 | 120 | 62,5 | 20 | 9 | 0,48 |
| PLASTICA BIANCA - WHITE PLASTIC | 16 | 15 | 1 | 4 | 9371160002 | 16 | 15 | 109 | 80 | 299 | 58 | 51 | 50 | 90 | 20 | 101 | 30 | 178 | 120 | 62,5 | 20 | 9 | 0,44 |
| PLASTICA BIANCA - WHITE PLASTIC | 20 | 15 | 1 | 4 | 9371200002 | 20 | 15 | 109 | 80 | 299 | 58 | 51 | 50 | 90 | 20 | 101 | 30 | 178 | 120 | 62,5 | 20 | 9 | 0,46 |
| PLASTICA BIANCA - WHITE PLASTIC | 26 | 15 | 1 | 4 | 9371260002 | 26 | 15 | 109 | 80 | 299 | 58 | 51 | 50 | 90 | 20 | 101 | 30 | 178 | 120 | 62,5 | 20 | 9 | 0,48 |
Valve 937 C included.
